Unified Modeling Language


The current version of the Abbott Unified Modeling Langauge application presents a work surface upon which the user can assembles a uses case diagram. The diagram is assembled by pulling components from the pallette. The workspace or use case diagram can grow to the limits of the PC on which the applicaiton is running

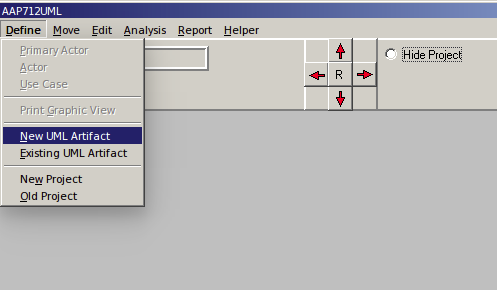

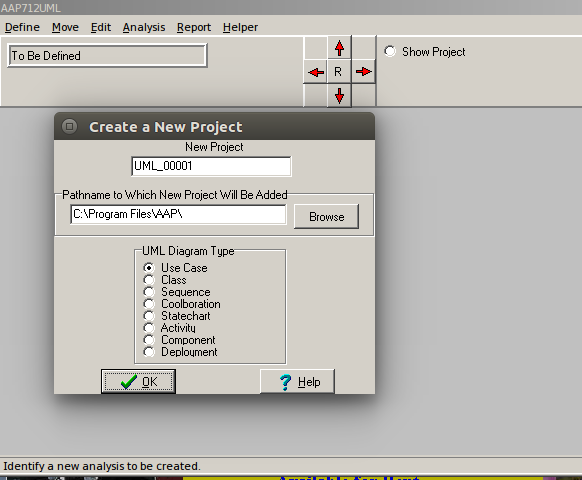

Creat or select exisitng UML project

Add content to the Use Case Diagram

Move model components around

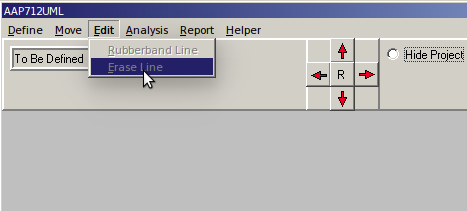

Provide a perception of relationship

Analyzse the relationships

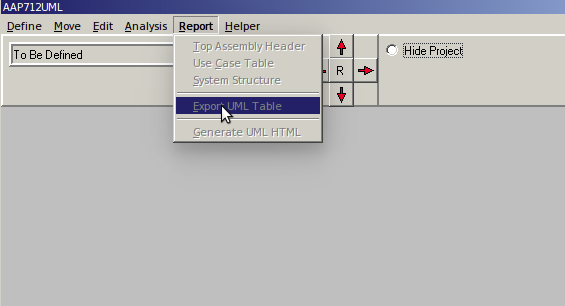

Generate a report for the Use Case Diagram

Navigate to extent of Use Case Diagram

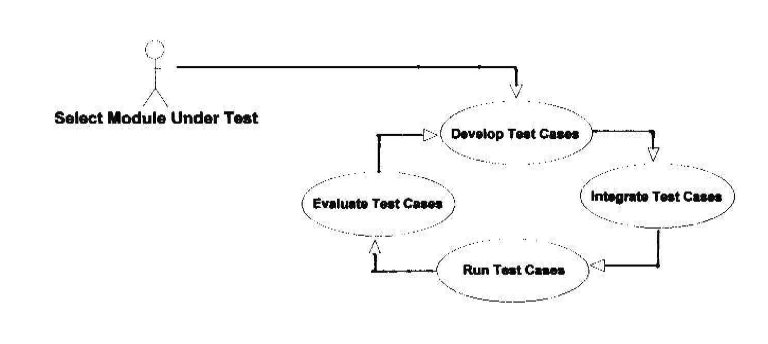

Example of simple Use Case Diagram

More COmplex

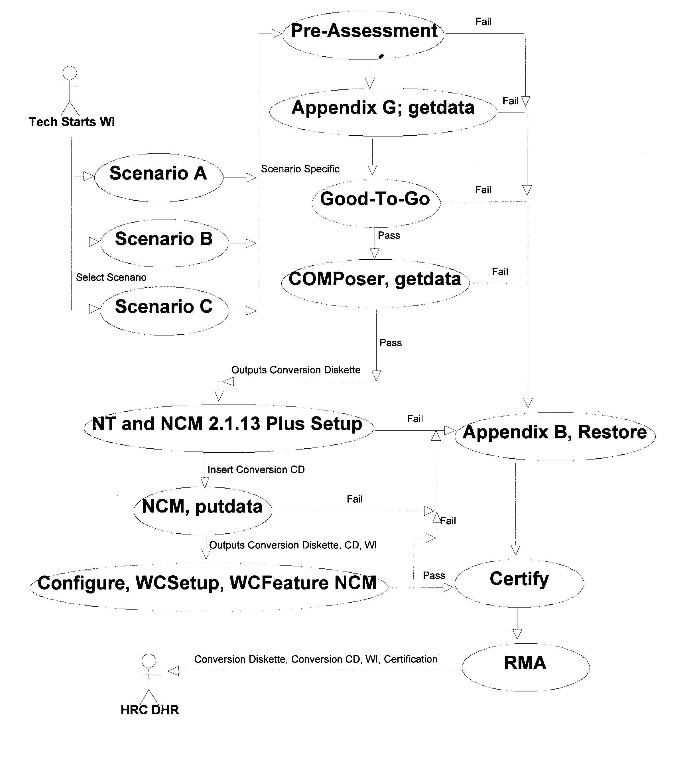

Example of more complex Use Case Diagram
