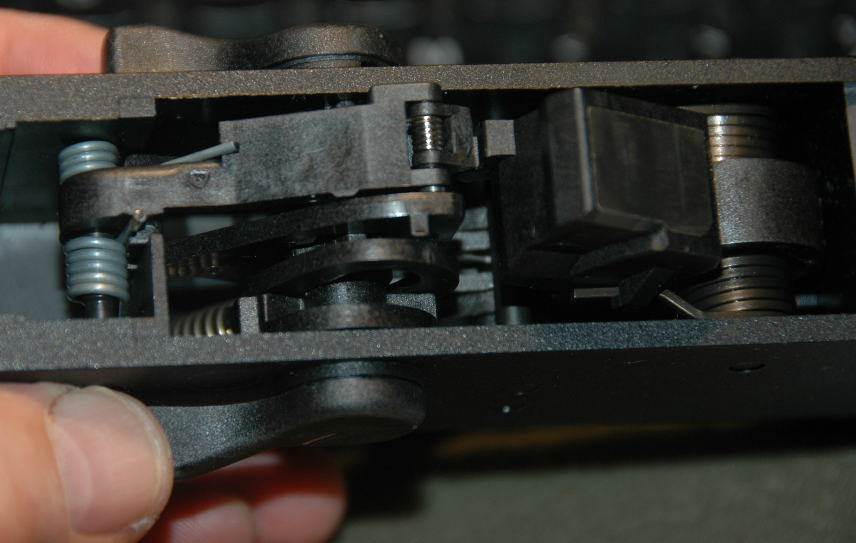

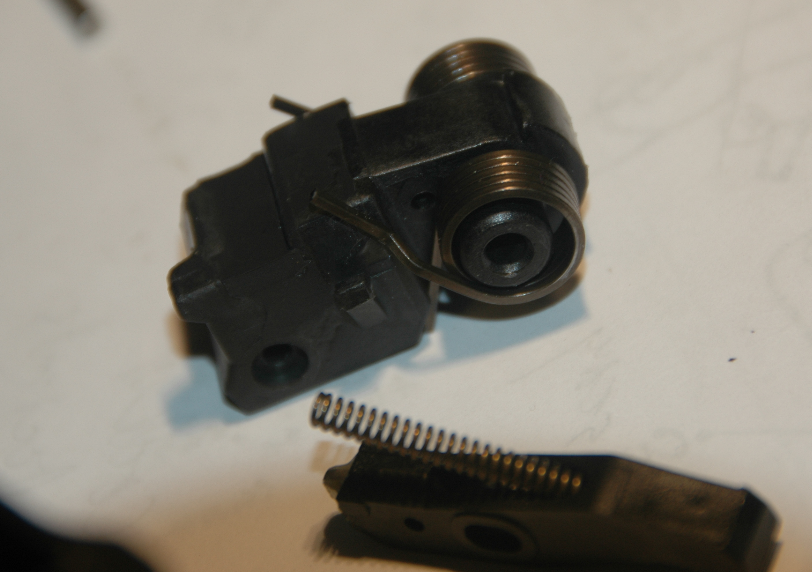

Trigger Housing Refer to Key Lower Housing collection of setps with photographs. USC Lower Pristine  Rear View USC Locking Lever with Springs  Locking Lever Removed  Hammer and Sear Set Aside  Hammer with Spring Fixed  Pins Popped from Right to Left  Pre-Trigger and Spring Removal  |

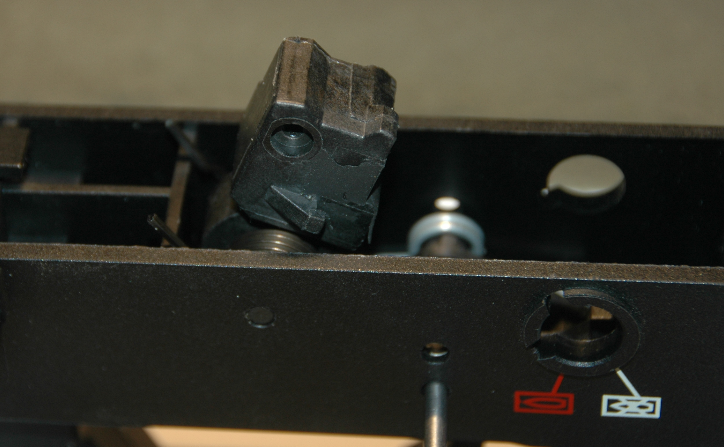

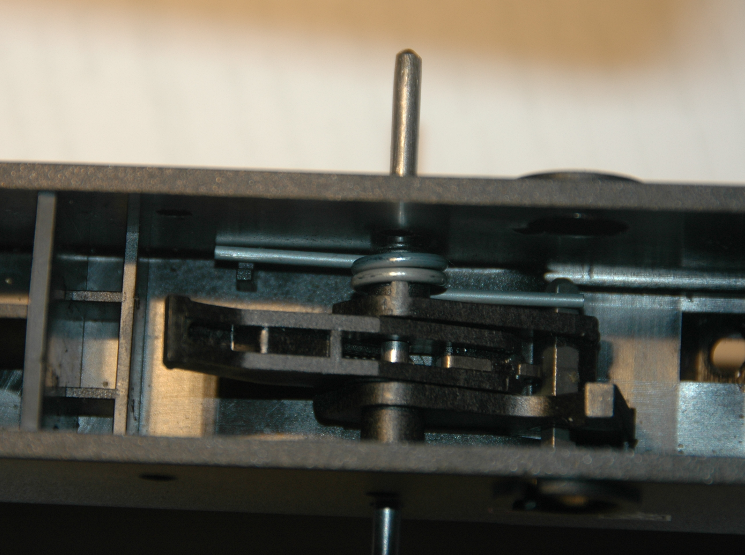

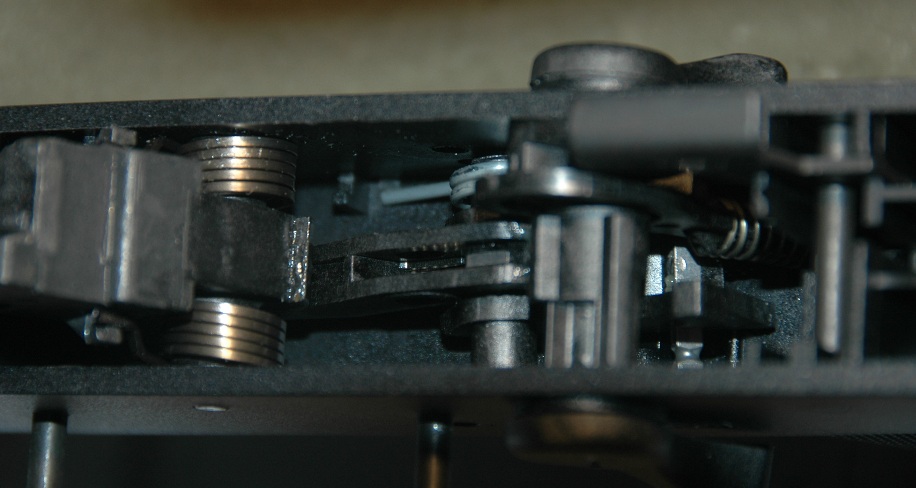

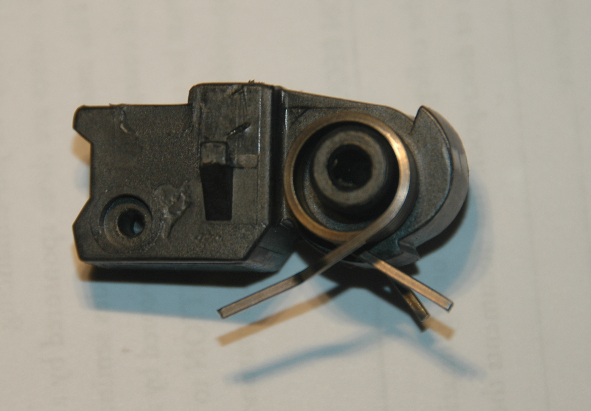

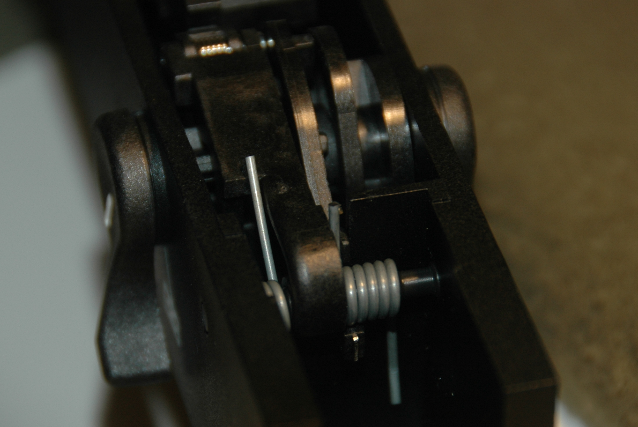

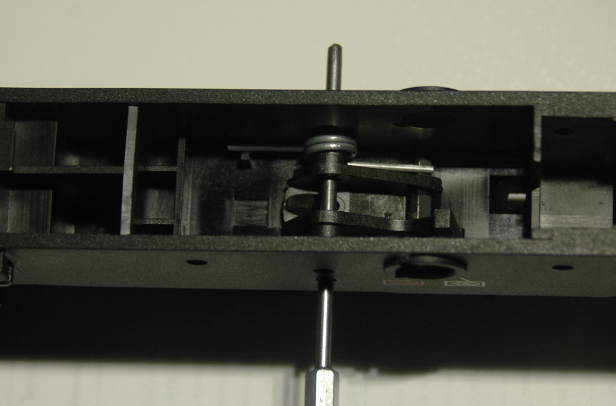

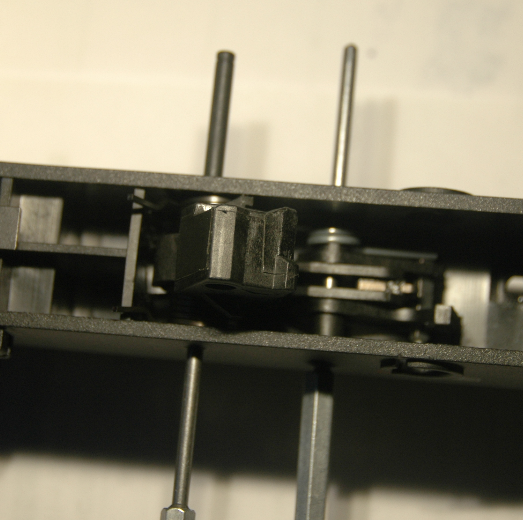

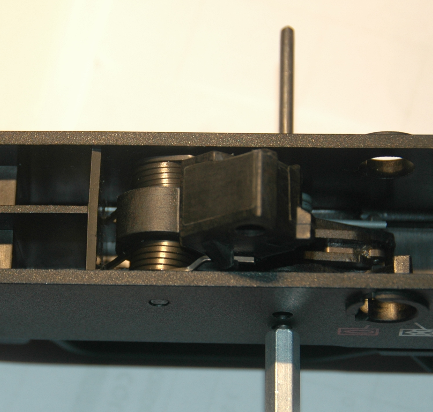

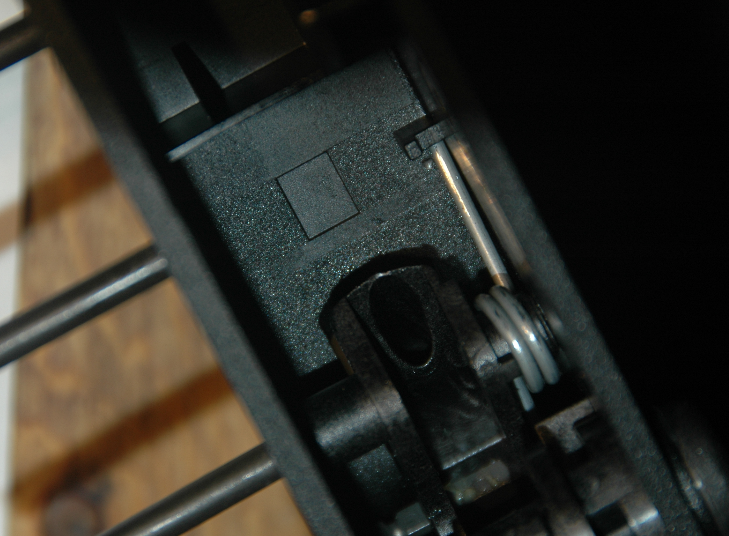

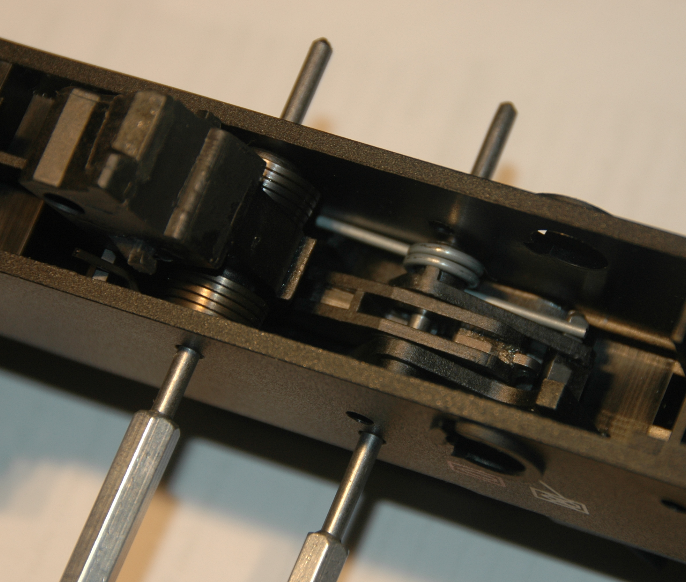

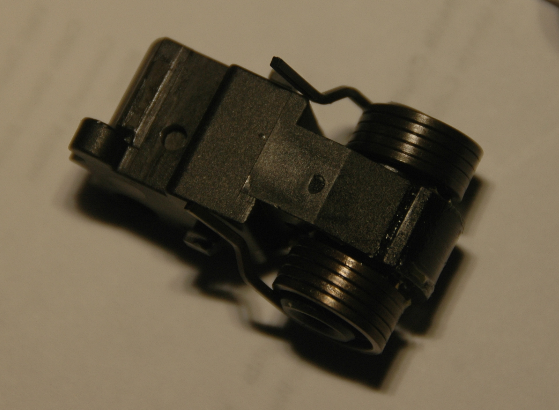

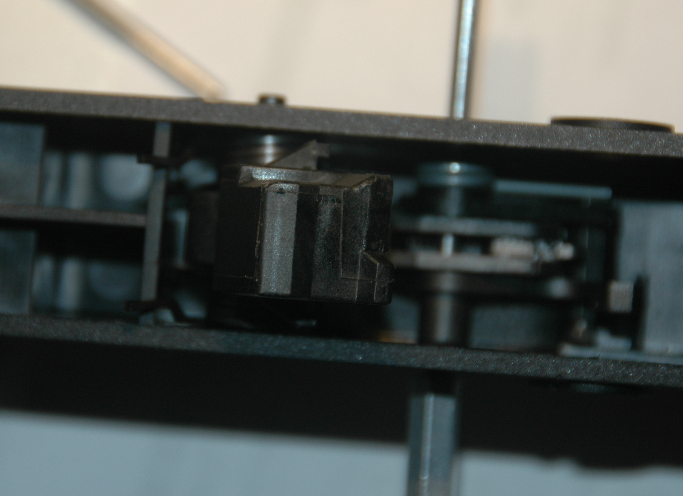

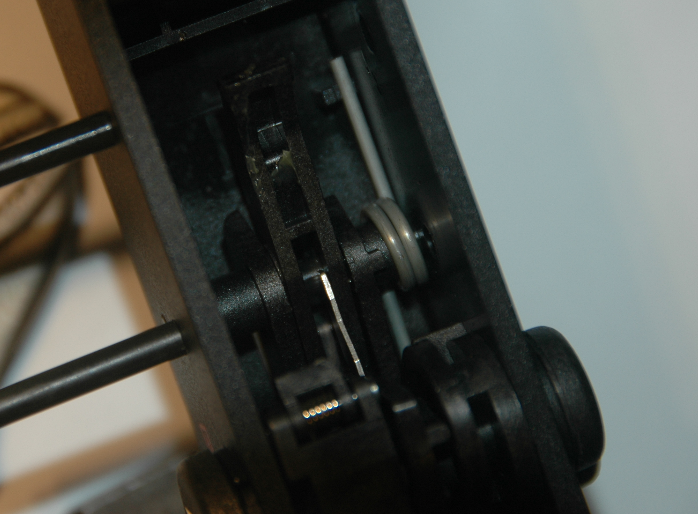

FBI Trigger Housing Conversion Refer to Key Lower Housing collection of setps with photographs. Images Faked Using USC Trigger Housing Pin Trigger and Spring Note use of probe.  Hammer Springs Relaxed Forward of Stud.  Sear and Spring Installer. Use gentle pressure on sear/spring and pull/push probe to seat.  Install Hammer/Spring Relaxed. Pin with probe. Note relaxed position of hammer spring on wall infront of stud.  Pin Hammer Pushing Probe Out of Housing. Maintain relaxed hammer spring.  Hammer Pin Needs to Be Flush. Gently push or hammer flush  Zoom-In to See Hammer Spring in Relaxed Positon. Note Hammer pin is flush to housing. Now ready to pre-load Hammer Spring using thumb nail to move around to back of stud.  Zoom-In to See Hammer Spring in Pre-Load state. Hammer is held in full travel forward position by Pre-Load.  Hammer engaged by Sear. Forcefully place palm over front of Hammer before releasing Trigger to PREVENT DAMAGE to Housing.  |

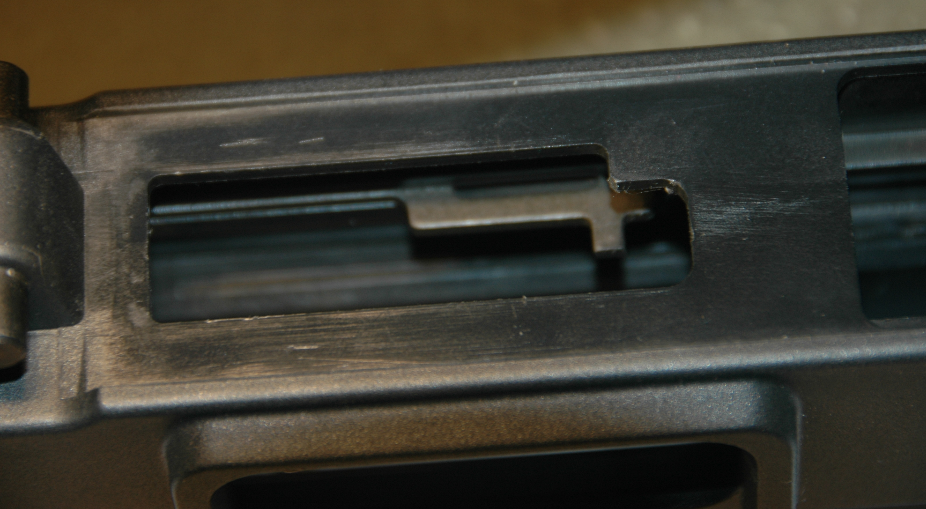

Mag Well Pre-Cut

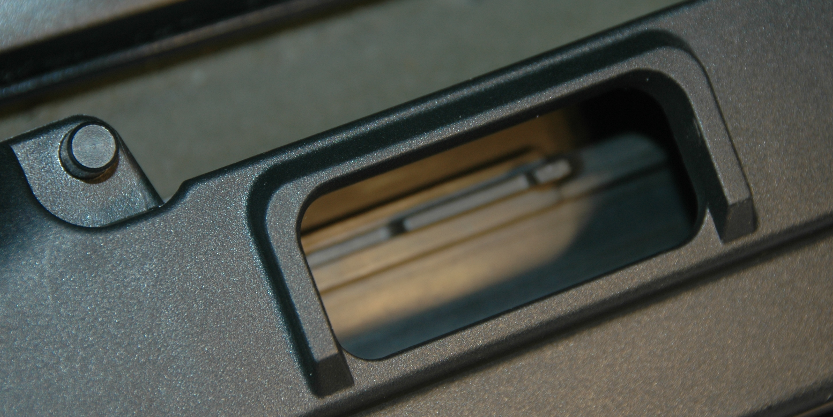

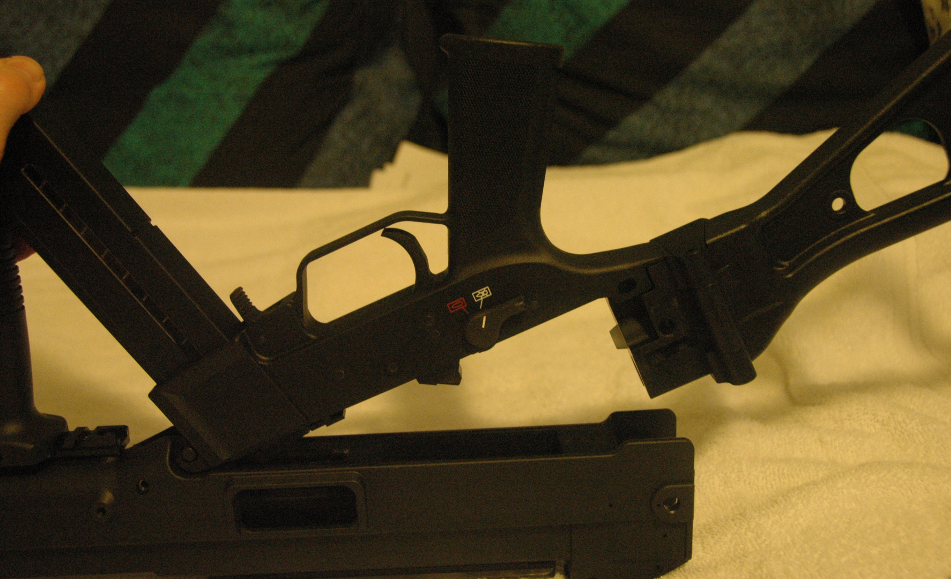

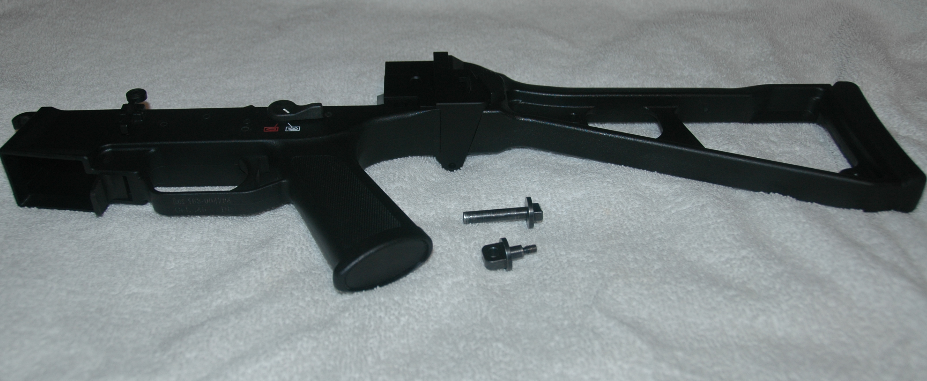

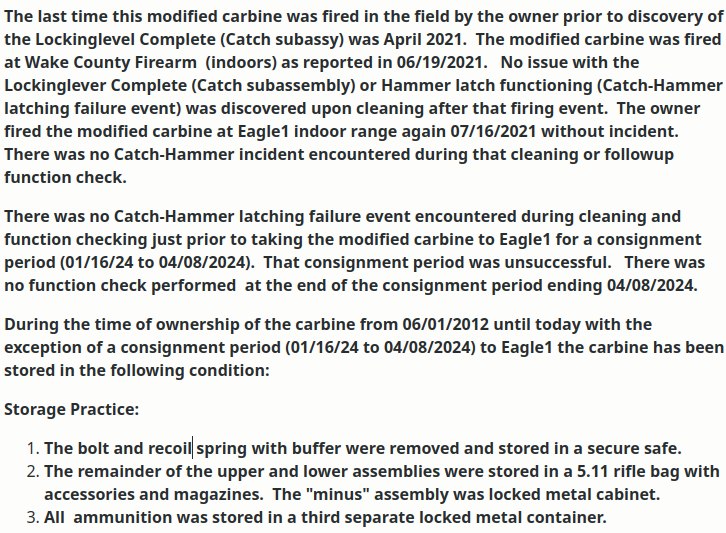

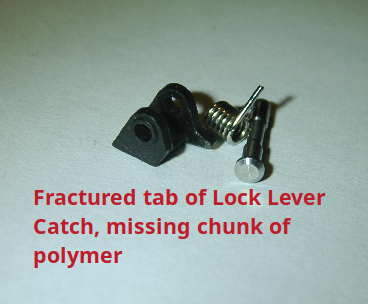

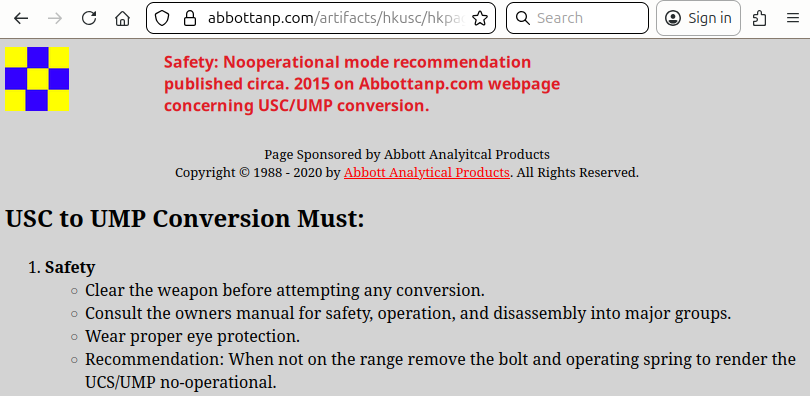

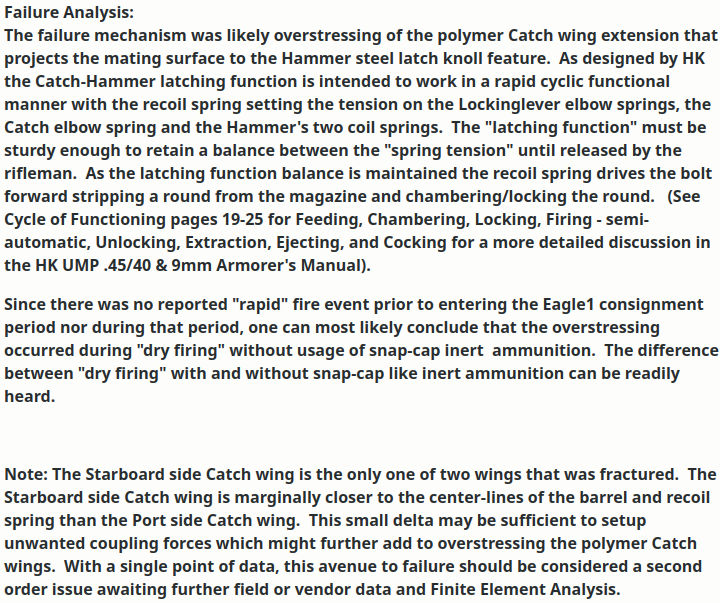

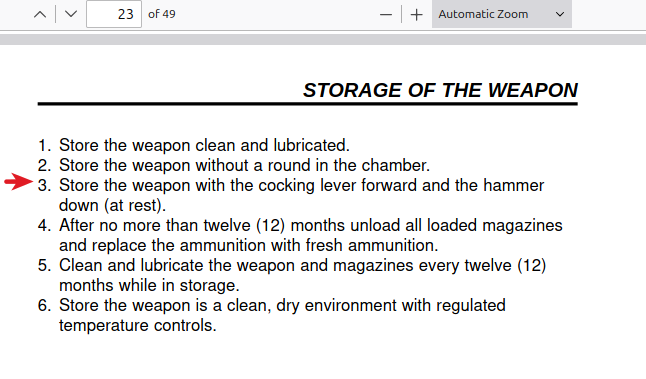

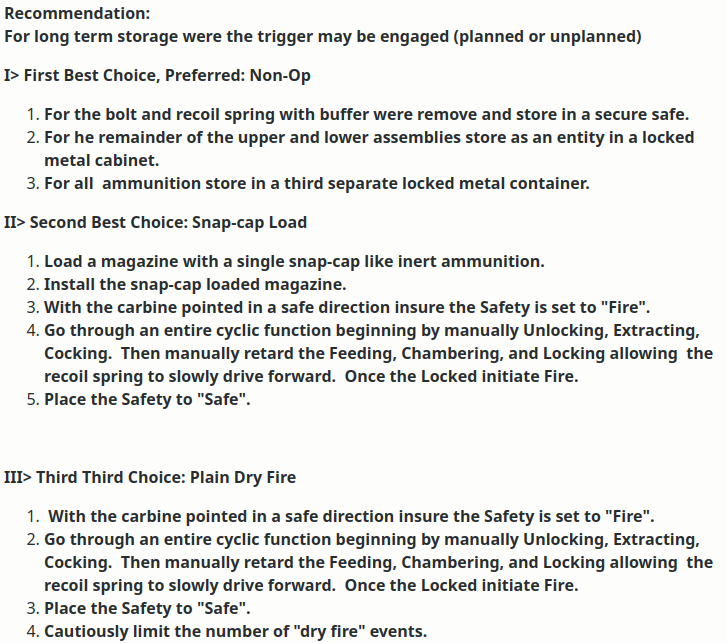

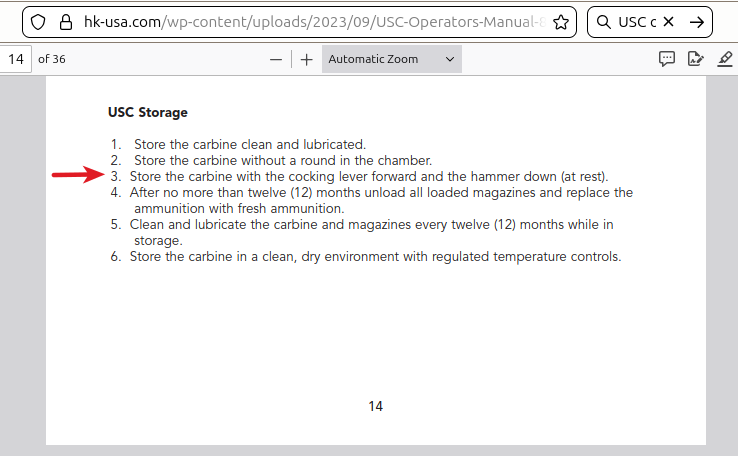

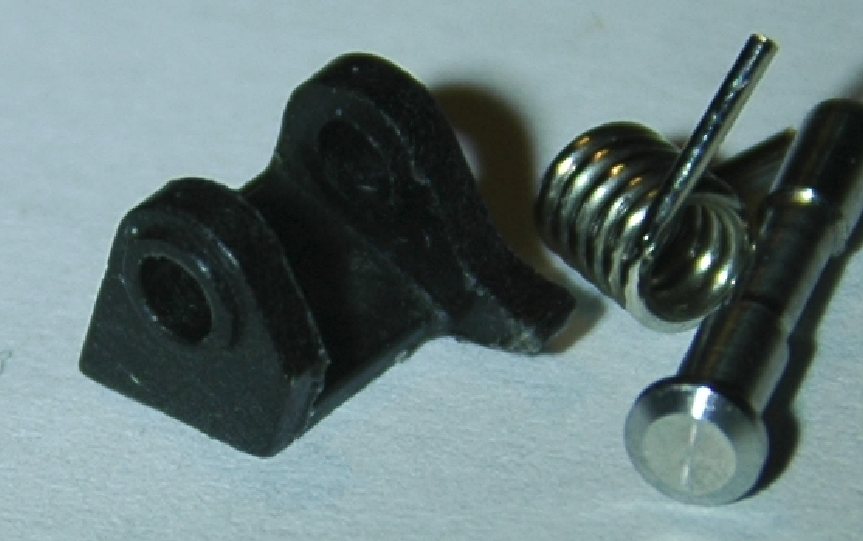

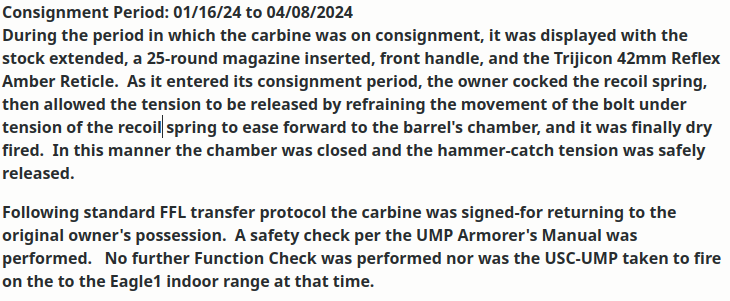

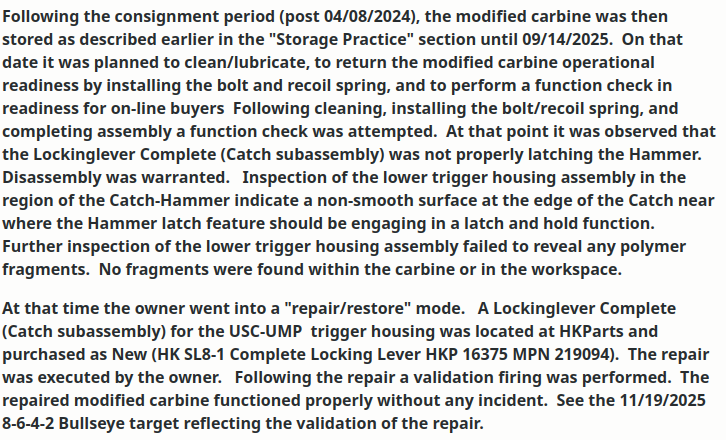

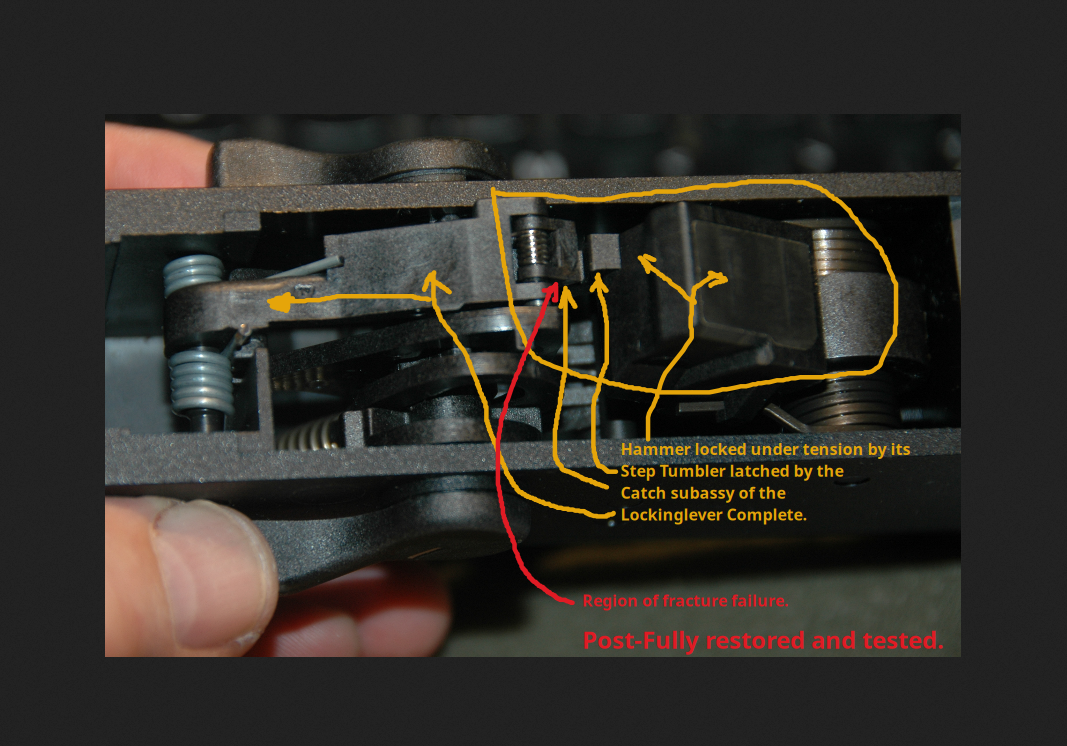

 Ejection Well  Hinge Pin Ejector Side  Hinge Pin Cocking Lever Side  Lower Ready For Final Assembly  Lower Close Fold Test  Locklever-Catch Failure Discovery 251007 Last Fired 210426 West Texas Sight Zero Pior to Hunt  120601 to 240116 Routine Handling  240116 to 240408 Consignment Periodr14_no-op_safeStoreage.png  Discovery/Repair  Failure Analysis  Failure Site  USC Storage  USC/UMP Safety Recommendation circa. 2012-2015  UMP Storage  Recommended Display or Longterm Storage  |

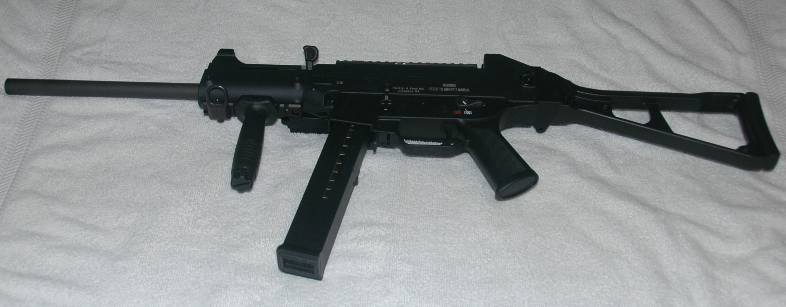

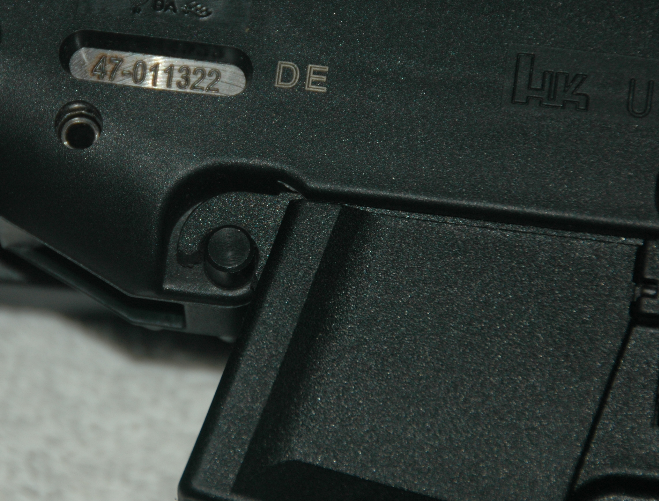

Cocking Lever Side

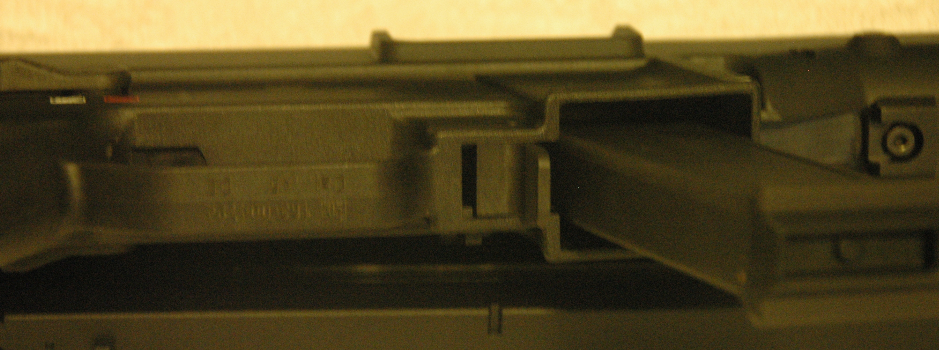

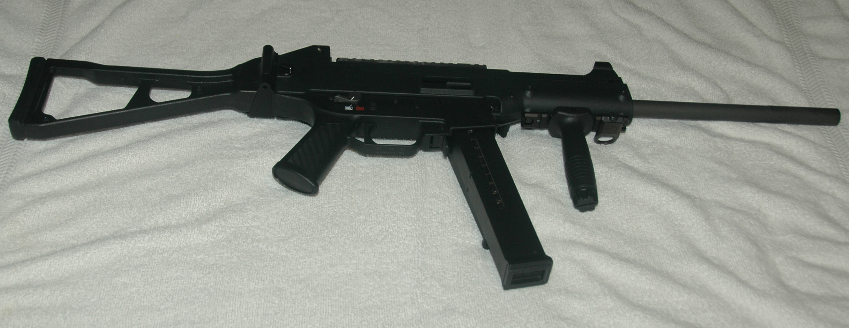

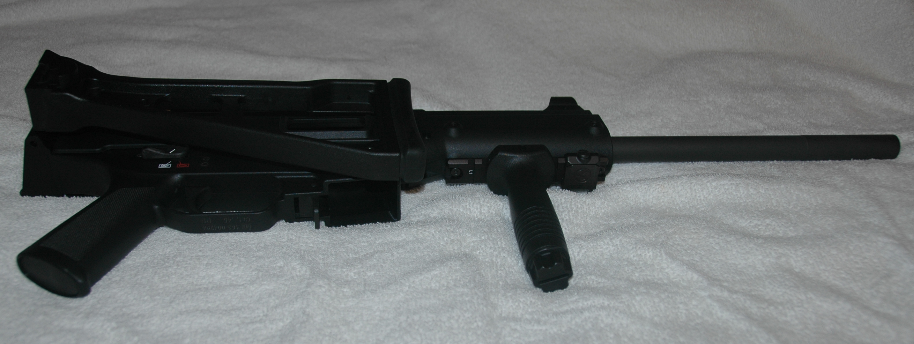

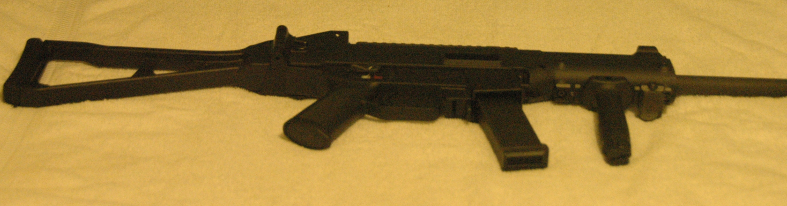

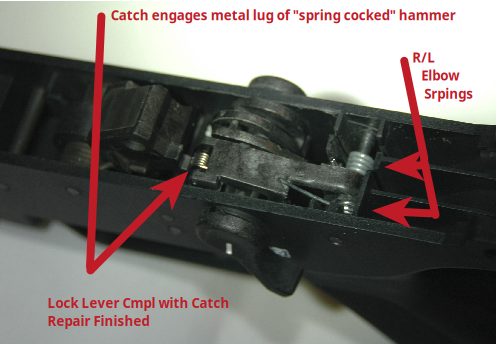

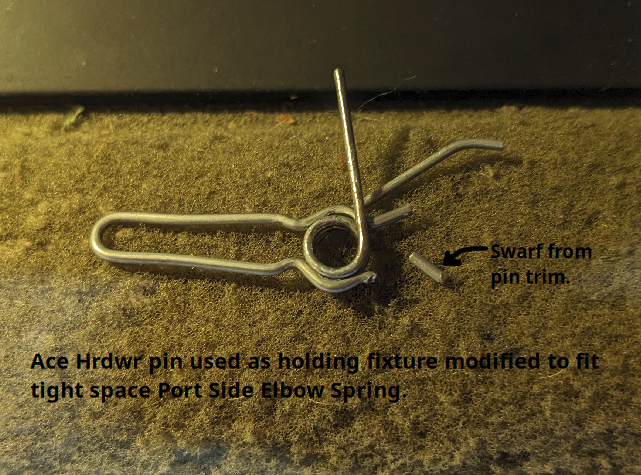

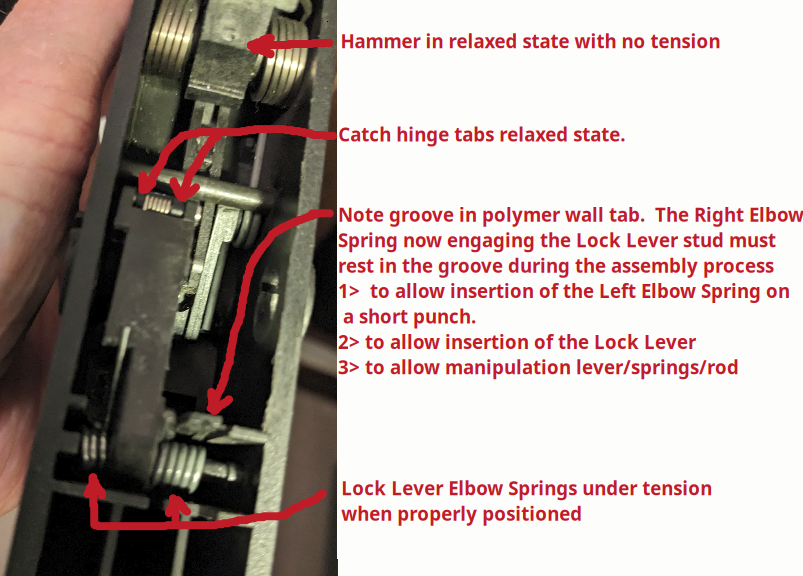

Ejector Side  Foldeed Stock Position  10 Round USC Magazine  10 Round USC Magazine From Lower  Locklever-Catch Repair 251128         |
