This web page contains working assumptions, a list of hardware/software integration tasks to perform, and a collection of helpful images with comments.
We are ready to proceed if:
Let's kick it forward with everything disconnected and powered-down:
| Link | Comment |
|---|---|
| TBD | This table was largely derived from the a031_speed_gun_004 project. The viewer should see multiple references to that entity. Each of those references has a similar reference in the a034_nc_chickadee project. |
| Common buttons | Both IDE's have a verify and an upload button. |

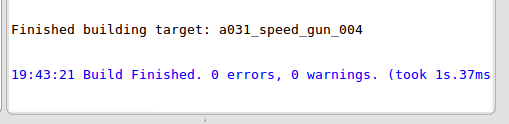

| Successful verify operation | A successful verify results in a notification that the build finished with zero errors. |
| Upload program to Arduino board | Given that the USB connection has been setup, a proper upload should result in a message that the avrdude is done. |
| Any upload pass/fail starts the cycle. | If the upload is successful and the "serial monitor view" is active then that tab should reflect message similar as shown. If it fails the message will not show. CAUTION: For failed uploads the Arduino will start executing whatever was in its memory before the upload. |
| TBD | TBD |
